Onvif-compatible IMX415 hikvision-compatible 4k 8MP 6MP 5MP 2MP outdoor POE IP PTZ cam speed dome camera 30x zoom ptz ip camera
Onvif-compatible IMX415 hikvision-compatible 4k 8MP 6MP 5MP 2MP outdoor POE IP PTZ cam speed dome camera 30x zoom ptz ip camera
Couldn't load pickup availability
SPECIFICATIONS
AI Functions: other
Alarm Action: telefon Alarm,Email Photo,Local Alarm
App name: other
Audio Output: Two Way Audio
Brand Name: Aokwevision
Certification: CE
Color: White
Color Night Vision: other
Connectivity: IP/Network Wired
Dimensions (L x W x D)(mm): 4 inches
High Definition: 8.0 Megapixels
Hign-concerned Chemical: None
IP Rating: IP66
IR Distance(m): 80m
IR distance: 60-80m
Installation: Normal
Internal Storage: None
Lens (mm): 4.7-94mm
Lens Quantity: Single Lens
Megapixels: 8MP
Minimum Illumination(Lux): 0
Movement Range(Pan): 0°-360°
Operating Temperature: -40°-60°
Optical Zoom: other
Origin: Mainland China
Pan: 360 degree
Pixel: 2MP/3MP/4MP/5MP/6MP/8MP
Power Consumption(W): 25w
Power Mode: Mains Electricity
Power Supply: With Poe
Power Supply(V): 110-240v
Resolution: Max 8MP
Scene: Indoor and outdoor
Sensor: CMOS,1/2.5 8MP CMOS
Sensor Brand: Sony
Shell Material: Metal
Smart home platform: other
Special Features: Vandal-proof
Style: Dome Camera
Supported Mobile Systems: Android,iOS
Supported Operating Systems: Windows 2003,Windows 98,Windows 2000,Windows 2008,Windows 7,Windows 10,Windows XP,Windows 8,Windows Vista
TF Card: None
Video Compression Format: H.265,H.264
Viewing Angle : 360°
Zoom: 30x
Zoom type: Optical zoom
is_customized: Yes
tilt: 90 degree
zoom: 30x(20x Optical+10x digital zoom)
Product Detailed description
How to Choose?
Without POE: Camera only can power on by Power adaptor
POE/Built-in POE: Camera can power on by Power adaptor and POE Device( POE switch/Injector / POE NVR etc.)
2MP 4MP Without POE: 2MP/4MP PTZ + IR Light + Microphone/Speaker
2MP 4MP POE: 2MP/4MP PTZ + IR Light + Microphone/Speaker + SD card slot + POE
6MP POE: 6MP PTZ +IR Light + Microphone/Speaker + SD card slot + POE
6MP POE Auto Track: 6MP PTZ + IR Light + Microphone/Speaker + SD card slot + POE + Human Auto Tracking

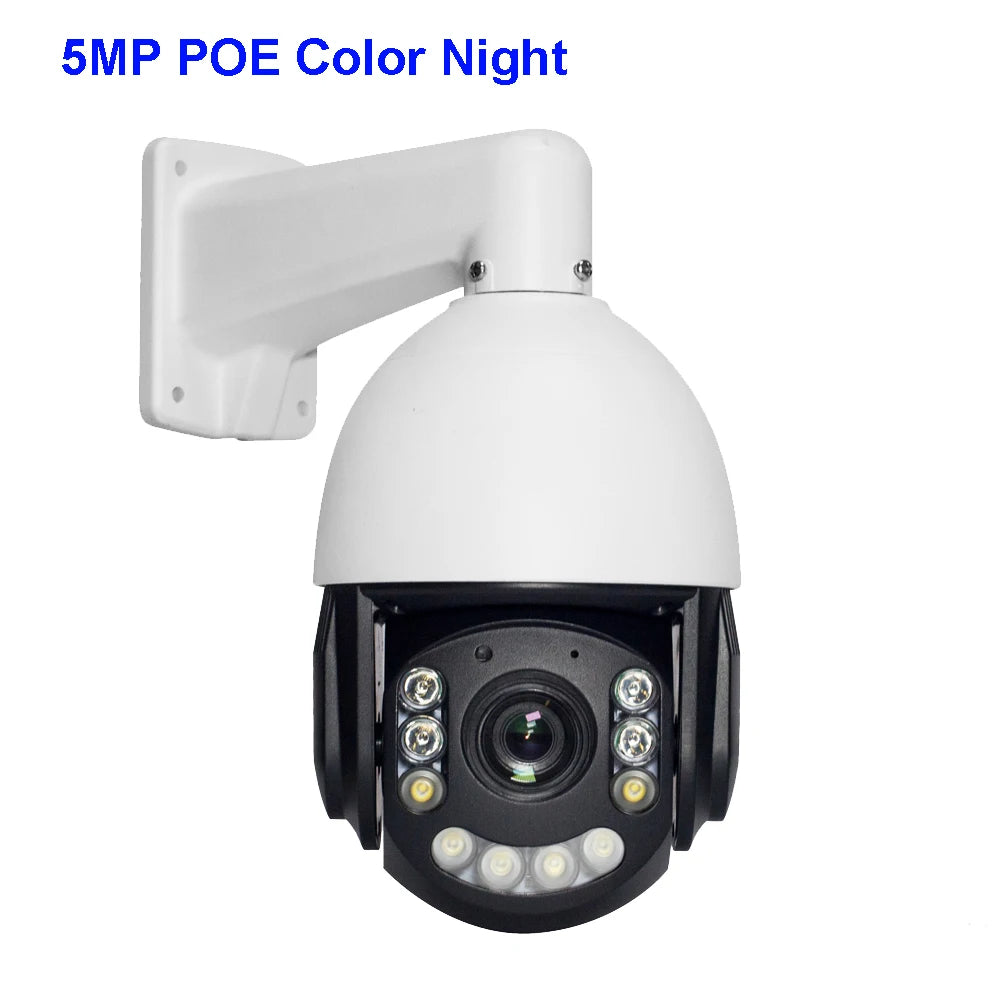

6MP POE Color Night: 6MP PTZ + Dual Light + Microphone/Speaker + SD card slot + POE + Humanoid Auto Tracking

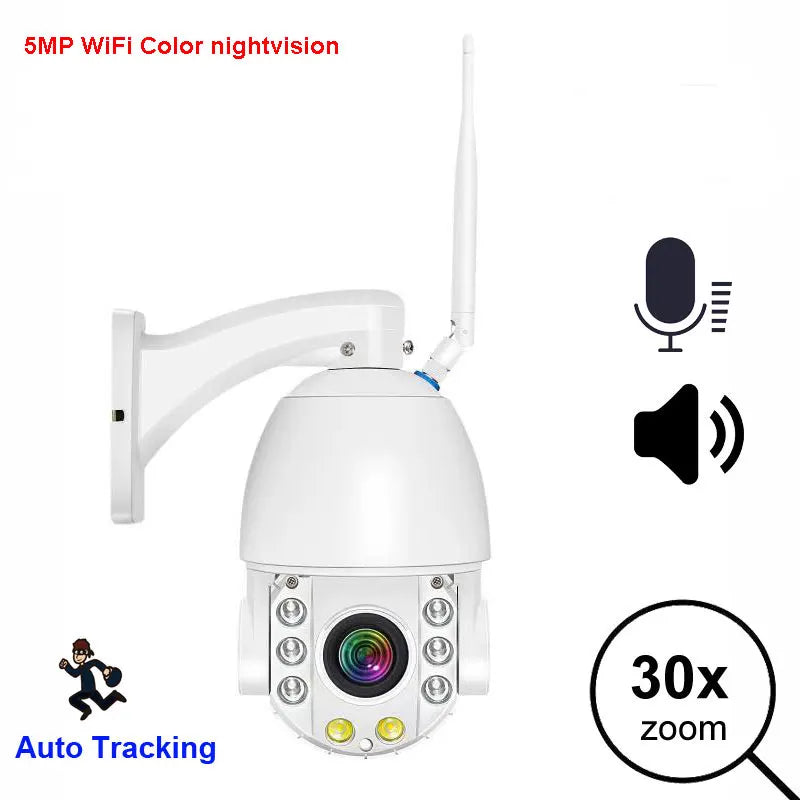

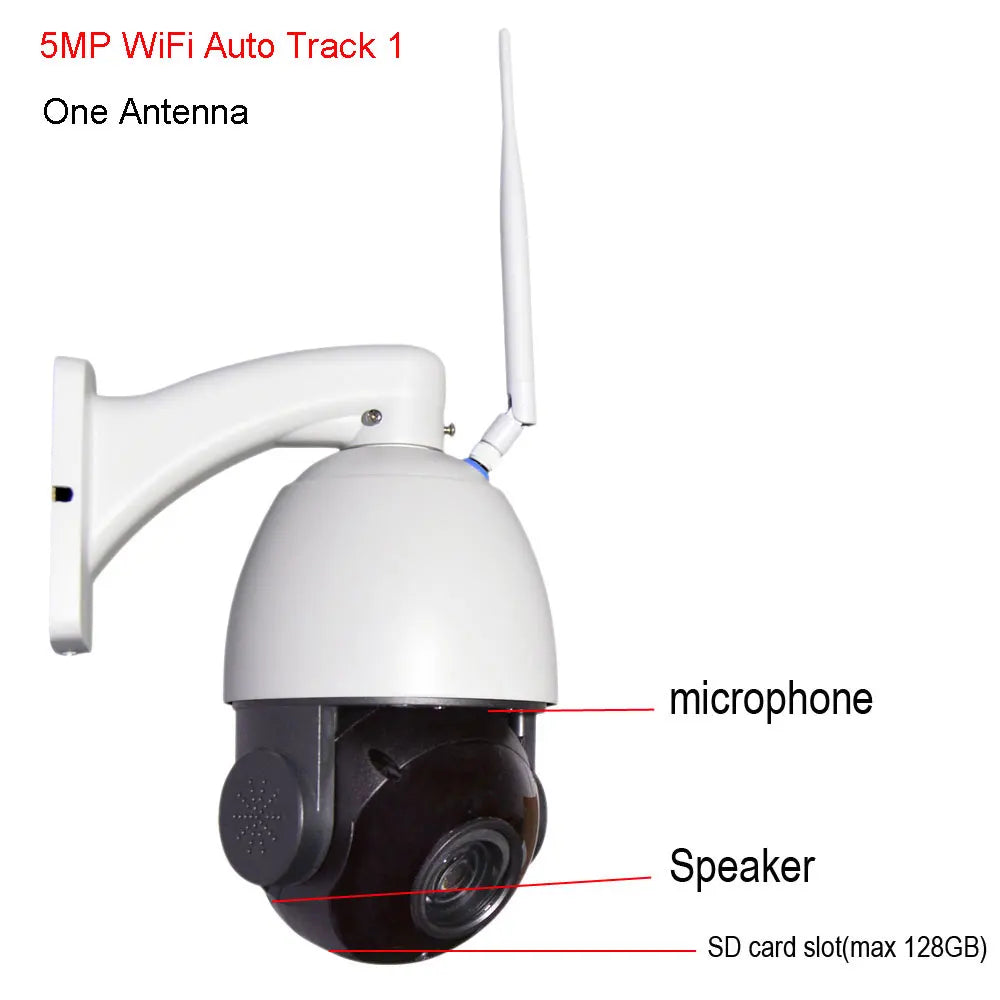

5MP WiFi Auto Track: 5MP PTZ + IR Light + Microphone/Speaker + SD card slot + WiFi + Human Auto Tracking

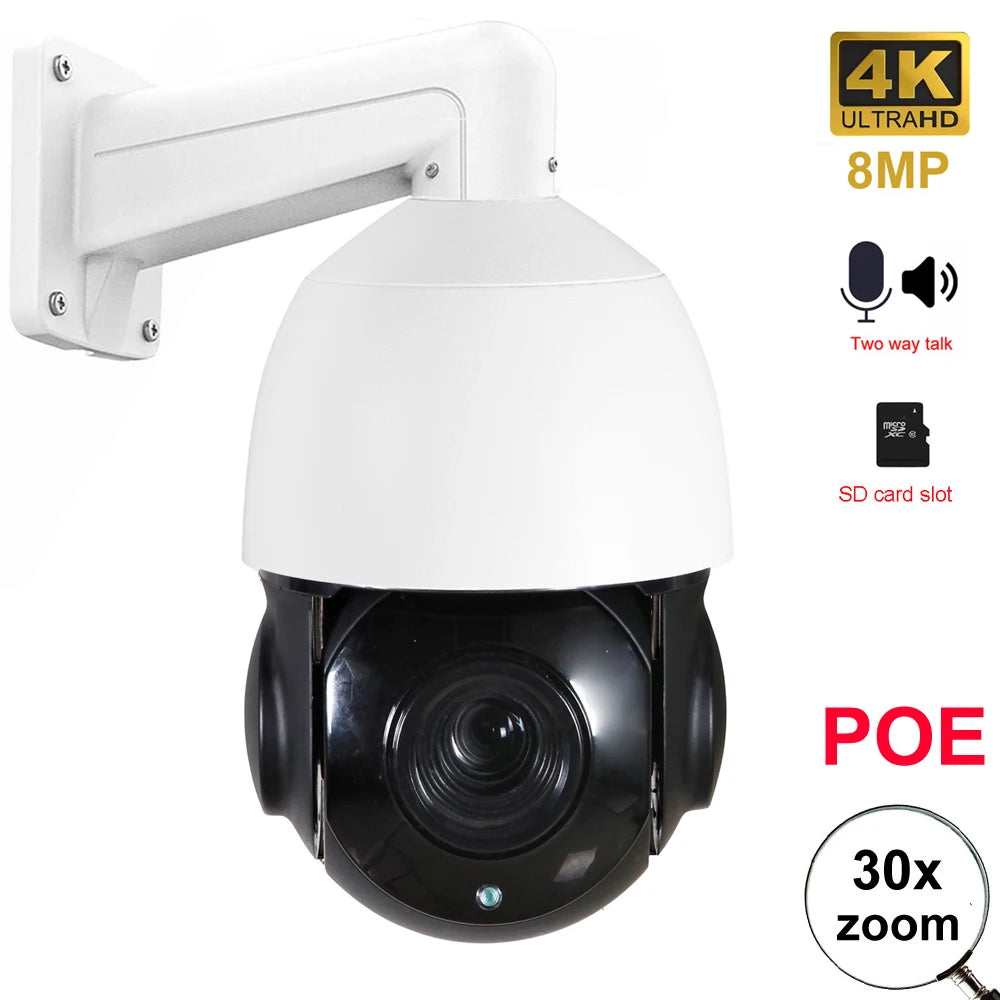

4K 8MP POE: 4K 8MP PTZ + IR Light + Microphone/Speaker + SD card slot + POE
4K POE Auto Track:4K 8MP PTZ +IR Light + Microphone/Speaker + SD card slot + POE + Human Auto Tracking
4K 8MP WiFi: 4K 8MP PTZ + IR Light + Microphone/Speaker + SD card slot + WiFi + Human Auto Tracking
2. this camera have ceiling mount for optional, if you need ceiling mount, pleaseClick Here

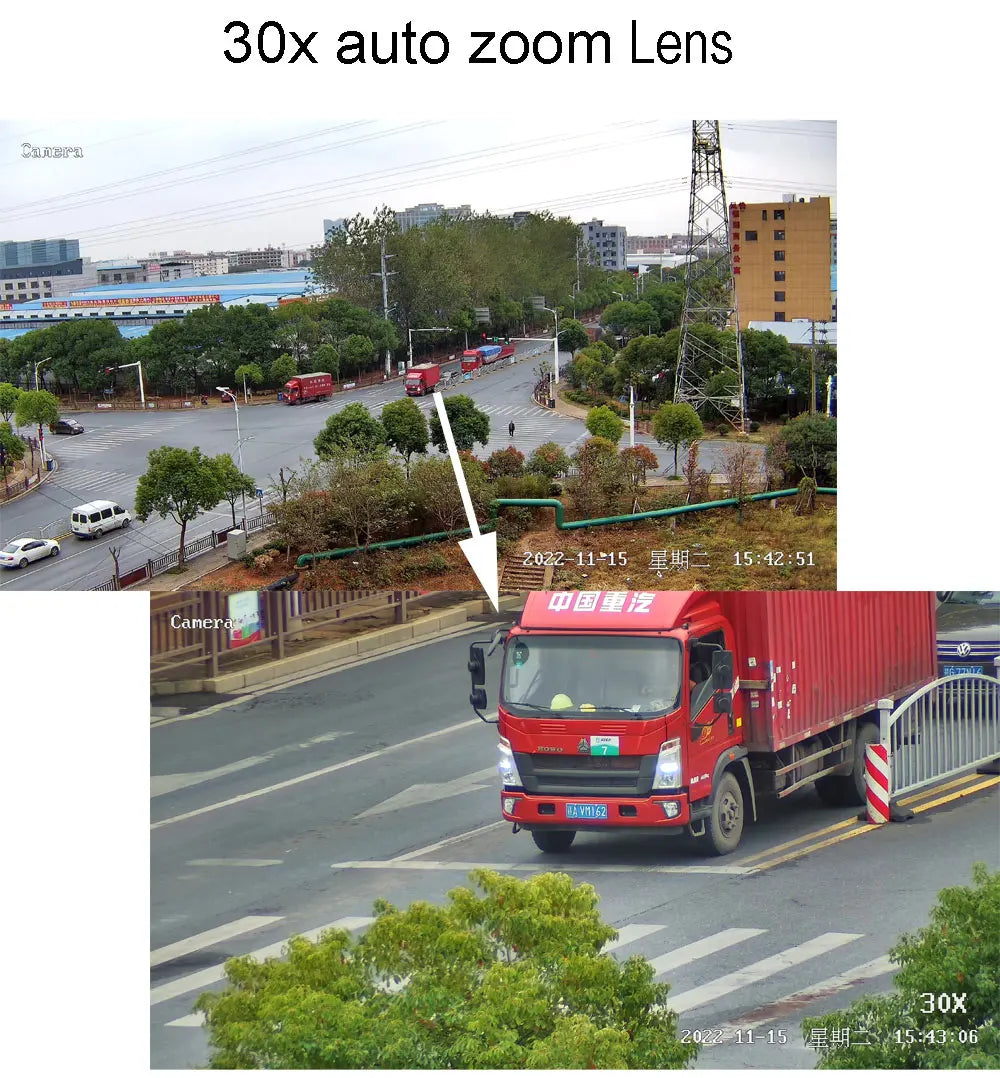

- 30x Optical+digital zoom
PTZ specifications:
Specifications
Camera Sensor: 8MP: SONY IMX415 CMOS Sensor
Total pixels: 2MP/4MP/5MP/8MP
Zoom: 30x zoom(20x Optical+10x digital zoom)
Iris: F1.6~F2.8
Min. illumination: 0 Lux (IR LED On)
D/N: IR-CUT
Digital noise reduction: 3D Digital noise reduction
Compression Format: H.264/H.265
Compression Rate: 32 Kbps~16Mbps
Smart Alarm: Motion detection, Occlusion & Memory error alarm
Support Protocols: TCP/IP,HTTP,DHCP,DNS,RTSP,SMTP,FTP,HTTPS etc.
Interface: 10M / 100M mbps Ethernet (RJ-45)
Management: IE and PC software (supplied with the camera)
Mobile phone monitor: P2P
Pan Speed: 0.02 - 60 degree/s
Tilt Speed: 0.02 -60 degree/s
Pan Range: 0-360 degree
Tilt Range: 0-93 degree
Auto Flip: Horizontal 180 degree, Vertical 93 degree
360 degree Scan: 1-9 Grades setting available
A-B Scan: User programmable
Preset Points: 220
Go to Preset Speed: 60 degree/s
Guard Tours: 3 groups
Guard Points: Max.14 points, dwell time user selectable
Pattern Scan: 4 pcs
Pattern Scan Record: Max.15 minutes, max.512 commands
Time Scheduling Function: 8 tasks
Communication Protocol: Pelco-D, Pelco-P
Communication:RJ45
Baud Rate: 1200/2400/4800/9600bps
Privacy Mask: Support
IR parameters: Auto Control IR LED
LEDs: 6pcs
IR distance: 60-80m
Operating temperature:-40°~ +60°
Humidity:≤95% Non Condensing
Power:DC12V 2-3A/ POE48V
Consumption:< 30W
Weight: 2 kgs
Waterproof: IP66
